FBD25

FBD25

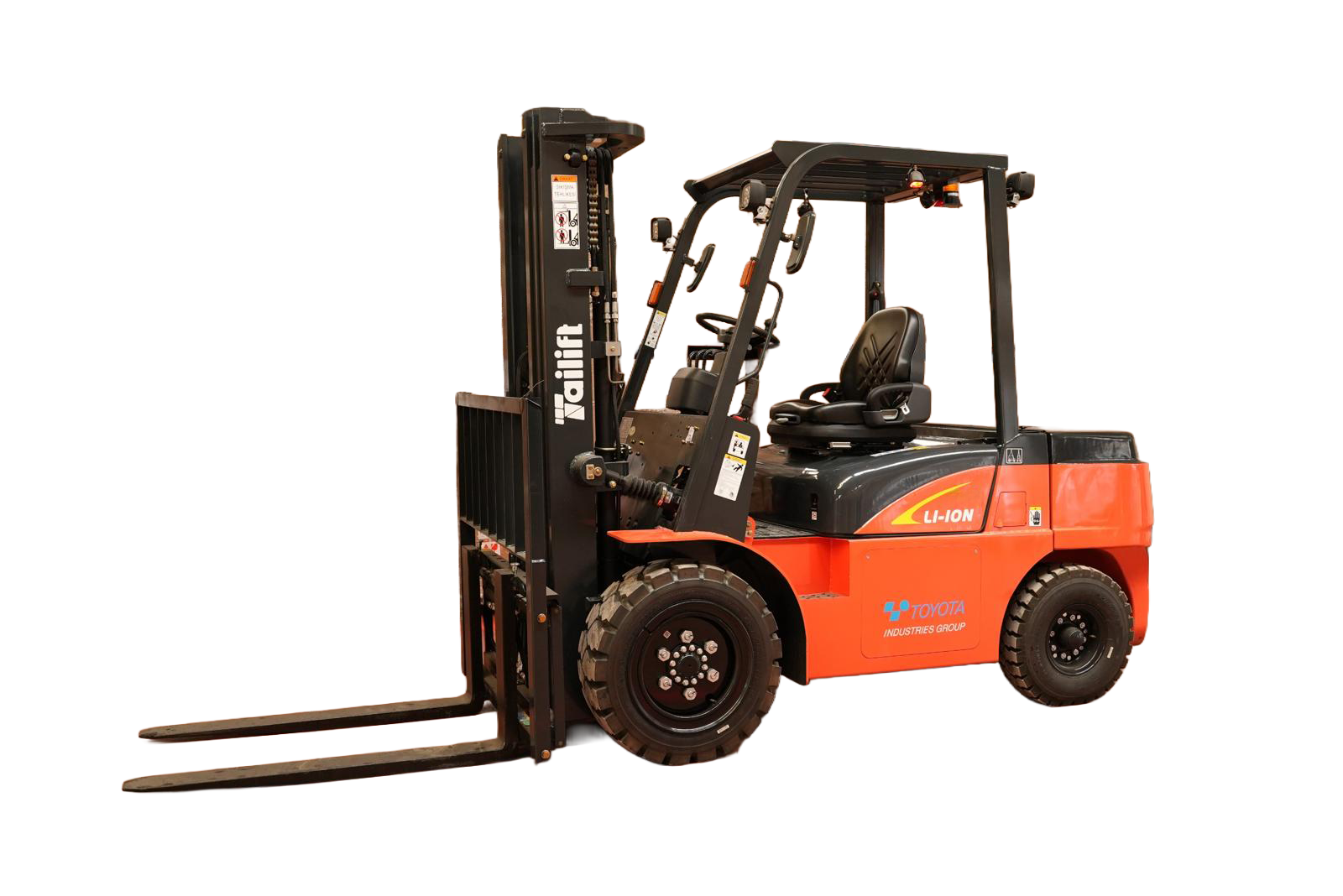

Discover the Tailift FBD25 lithium-ion forklift. Emission-free, powerful, and eligible for subsidies. Configure your machine or your entire fleet directly online. The Heartbeat of Your Intralogistics: Quiet. Precise. Relentless. Imagine moving 2,500 kilograms of solid construction steel or sensitive palletized goods with the ease and precision of a watchmaker. The Tailift FBD25 isn't just a forklift; it's the silent athlete in your warehouse. Where deafening diesel noise and toxic exhaust fumes once filled the hall, the FBD25 series glides whisper-quiet through the narrowest corridors (only 4,000 mm working aisle width) thanks to state-of-the-art lithium-ion technology. Whether you are a medium-sized enterprise looking for an agile lone wolf for daily loading and unloading, or a logistics center looking to build a connected fleet battalion—the FBD25 scales with your operational needs. The transition to emission-free drives is heavily subsidized by the government. In Germany, companies purchasing this fully electric forklift benefit from direct BAFA subsidies that cover up to 33% of the investment costs (or the cost difference compared to a combustion engine). You invest in a green future, drastically reduce your Total Cost of Ownership (TCO) by eliminating maintenance costs for combustion engines, and the government picks up a large part of the bill. We are happy to advise you and your fleet planners on the details of the application process.

Price on request
Brand Tailift
Model FBD25-4.800
Power Source Li-Ion Battery
Load Capacity 2.500 kg
Load Center 500 mm
Maximum Lifting Height Triplex 4.800 mm
Sideshift Included
Free Lifting Height 945 mm (Load rest inc.)
Load Rest 1.220 mm
Fork Dimensions (T×W×L) 45 x 122 x 1220 mm
Mast Tilt Angles (Fwd/Bwd) 60 / 120
Machine Length 2.595 mm (Fork ext.)
Machine Width 1.158 mm
Mast Height Lowered 2.200 mm
Mast Height Extended 6.020 mm (Load rest inc.)
Overhead Guard Height 2.150 mm
Operator Seat Height 1.140 mm
Fork Carriage Width 1.150 mm
Turning Radius 2.325 mm
Distance Front Axle to Fork 475 mm
Aisle Width (Pallet 800×1000) 4.000 mm
Aisle Width (Pallet 800×1200) 4.200 mm
Travel Speed (Loaded/Unloaded) 13 / 15 km/h
Lifting Speed (Loaded/Unloaded) 330 / 400 mm/s
Lowering Speed (Loaded/Unloaded) 550 / 580 mm/s
Drawbar Pull (Loaded/Unloaded) 14.300 KN
Max. Gradient Capacity 15%
Total Weight 3.650 kg
Front Tire / Wheel Size 7.00-7-12PR
Rear Tire / Wheel Size 6.00-9-10PR
Wheelbase 1.550 mm
Ground Clearance (Min./Center) 105 mm / 200 mm
Battery Voltage 80 V
Battery Capacity 280 Ah
Motor Brand EIKTO
Motor Model SUPEREC
Travel Motor 10 kW
Hydraulic Motor 12 kW
Charger 150 Ah
Chassis Configuration New Chassis with wide operator view
Operator Performance Profiles Automatic operator levels & 3 operator levels
Default Fork Length 1.220 mm forks
Control Panel LED control panel
Exhaust System Hidden exhaust pipe
Operator Seat Toyota type suspension seat
Lighting LED front & rear lights
Directional Control -
Aisle Width (Pallet 1000×1200) -
Engine Brand -
Engine Model -
Cylinders / Displacement -
Max. Engine Power -
Electrical System Voltage -
Hydraulic Control -
Leveling Systems -
