FBD50

FBD50

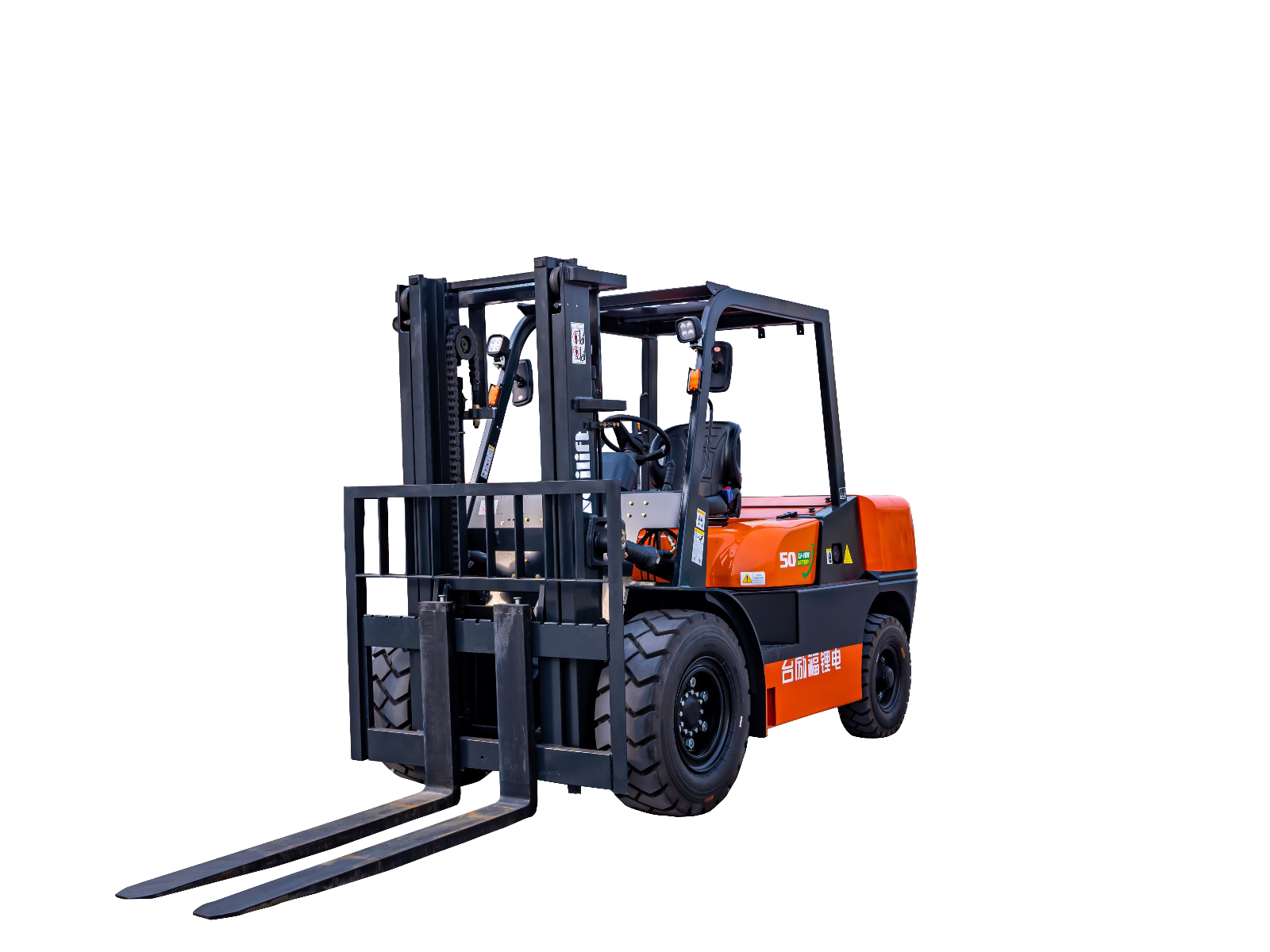

Discover the massive 5.0-ton Tailift FBD50 lithium-ion forklift. Featuring a 153.6V high-voltage system, zero emissions, and eligible for subsidies. Colossal Lifting Power. High-Voltage Precision. Zero Emissions. Moving 5,000 kilograms of structural steel, massive concrete molds, or heavy industrial machinery used to mandate a loud, heavily polluting diesel engine. The Tailift FBD50 completely shatters that limitation. Powered by an advanced 153.6V high-voltage lithium-ion system and a massive 25 kW EIKTO SUPEREC travel motor, this 5.0-ton giant delivers the explosive torque and relentless pushing power of a combustion engine—but with absolute silence and zero exhaust emissions. Despite its colossal 6,380 kg operating weight, it navigates complex heavy-duty indoor and outdoor logistics with a 3,090 mm turning radius. It is the ultimate clean-energy workhorse for steel mills, automotive manufacturing plants, and large-scale distribution centers that refuse to compromise on lifting capacity while transitioning to green logistics. Securing a heavy-duty 5-ton forklift no longer requires absorbing massive capital expenditure alone. Across Europe, the shift toward electrified heavy machinery is backed by aggressive government incentives. In Germany & Europe, procurement of the fully electric FBD50 qualifies your company for direct subsidies. You gain a state-of-the-art, high-voltage asset, drastically slash your Total Cost of Ownership (TCO) through zero engine maintenance, and lower your corporate carbon footprint. Our fleet experts are ready to assist you with the funding application process.

Price on request
Brand Tailift
Model FBD50-4.500
Power Source Li-Ion Battery
Load Capacity 5.000 kg
Load Center 500 mm
Maximum Lifting Height Triplex 4.500 mm
Sideshift Included
Free Lifting Height 945 mm (Load rest inc.)
Load Rest 1.220 mm
Fork Dimensions (T×W×L) 50 x 150 x 1520 mm
Mast Tilt Angles (Fwd/Bwd) 60 / 120
Machine Length 3.365 mm (Forks exc.)
Machine Width 1.530 mm
Mast Height Lowered 2.220 mm
Mast Height Extended 6.020 mm (Load rest inc.)
Overhead Guard Height 2.270 mm
Operator Seat Height 1.355 mm
Fork Carriage Width 1.145 mm
Turning Radius 3.090 mm
Distance Front Axle to Fork 565 mm
Aisle Width (Pallet 800×1000) 4.290 mm
Aisle Width (Pallet 800×1200) 4.490 mm
Travel Speed (Loaded/Unloaded) 18 / 18 km/h
Lifting Speed (Loaded/Unloaded) 290 / 380 mm/s
Lowering Speed (Loaded/Unloaded) 530 / 350 mm/s
Drawbar Pull (Loaded/Unloaded) 24.000 KN
Max. Gradient Capacity 18%
Total Weight 6.380 kg
Front Tire / Wheel Size 300-15-20PR
Rear Tire / Wheel Size 7.0-12-12PR
Wheelbase 1.230 mm
Ground Clearance (Min./Center) 140 mm / 230 mm
Battery Voltage 153.6 V
Battery Capacity 230 Ah
Motor Brand EIKTO
Motor Model SUPEREC
Travel Motor 25 kW
Hydraulic Motor 10 kW
Charger 100 Ah
Chassis Configuration New Chassis with wide operator view
Operator Performance Profiles Automatic operator levels & 3 operator levels
Default Fork Length 1.220 mm forks
Control Panel LED control panel
Exhaust System Hidden exhaust pipe
Operator Seat Toyota type suspension seat
Lighting LED front & rear lights
Directional Control -
Aisle Width (Pallet 1000×1200) -
Engine Brand -
Engine Model -
Cylinders / Displacement -
Max. Engine Power -
Electrical System Voltage -
Hydraulic Control -
Leveling Systems -
