FD 30

FD 30

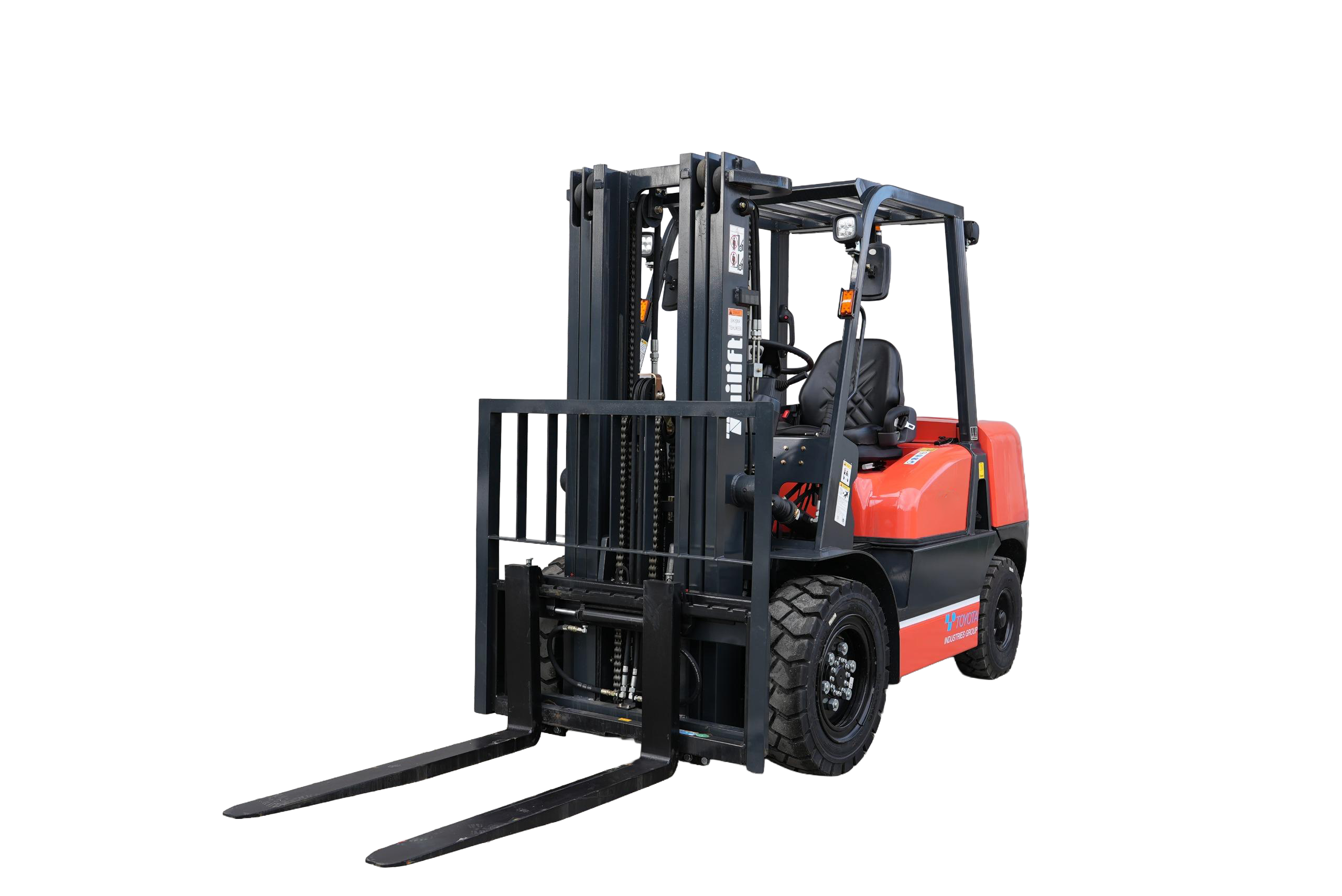

Discover the rugged Tailift FD30 diesel forklift. 3.0-ton capacity, EU Stage V compliant Xinchai engine, and built for aggressive outdoor operations. Unstoppable Power for the Harshest Environments. When you are operating in a muddy lumber yard, an exposed construction site, or a heavy-duty recycling plant, you don't have time to wait for a battery to charge. You need raw, uninterrupted power. The Tailift FD30 is a 3,000 kg capacity diesel powerhouse built specifically for aggressive outdoor material handling. Boasting a rapid 18 km/h travel speed and an immense 29,000 N of drawbar pull, this machine cuts through uneven terrain and steep 20% gradients without breaking a sweat. We designed the FD30 around the operator. The cleverly hidden exhaust pipe clears the driver's line of sight, while the new wide-view chassis and Toyota-type suspension seat absorb the brutal impacts of rough outdoor yards, keeping your team focused and fatigue-free over long 12-hour shifts. Operating diesel machinery in Europe means facing strict environmental scrutiny. The FD30 completely eliminates this operational risk. It is powered by the state-of-the-art XINCHAI 3E22YG51 engine, which is fully certified for EU Stage V emission standards. This guarantees that your fleet remains legally compliant, allowing you to operate safely in regulated municipal zones while maintaining the relentless, refuel-and-go efficiency of a premium diesel engine.

Price on request
Brand Tailift
Model FD30-4.500
Power Source Diesel
Load Capacity 3.000 kg
Load Center 500 mm
Maximum Lifting Height Triplex 4.500 mm
Sideshift Included
Free Lifting Height 950 mm (Load rest inc.)
Load Rest 1.220 mm
Fork Dimensions (T×W×L) 45 x 122 x 1220 mm
Mast Tilt Angles (Fwd/Bwd) 6° / 6°
Machine Length 3.885 mm (Forks inc.)
Machine Width 1.276 mm
Mast Height Lowered 2.150 mm
Mast Height Extended 5.720 mm (Load rest inc.)
Overhead Guard Height 2.170 mm
Operator Seat Height 1.140 mm
Fork Carriage Width 1.150 mm
Turning Radius 2.550 mm
Distance Front Axle to Fork 485 mm
Aisle Width (Pallet 800×1200) 4.240 mm
Aisle Width (Pallet 1000×1200) 4.440 mm
Travel Speed (Loaded/Unloaded) 18 / 18 km/h
Lifting Speed (Loaded/Unloaded) 380 / 430 mm/s
Lowering Speed (Loaded/Unloaded) 490 / 450 mm/s
Drawbar Pull (Loaded/Unloaded) 29.000 N
Max. Gradient Capacity 20% / 20%
Total Weight 4.622 kg
Front Tire / Wheel Size 28x9-15-14PR
Rear Tire / Wheel Size 6.50-10-10PR
Wheelbase 1.700 mm
Ground Clearance (Min./Center) 110 mm / 160 mm
Engine Brand XINCHAI
Engine Model 3E22YG51 (Stage V)
Max. Engine Power 60 Hp / 2.400 rpm
Cylinders / Displacement 3 / 2.230 cc
Electrical System Voltage 12 V
Battery Capacity 100 Ah
Chassis Configuration New Chassis / Wide View
Operator Performance Profiles 3 Operator Levels
Leveling Systems Automatic Operator Levels
Default Fork Length 1.220 mm
Control Panel LED Control Panel
Exhaust System Hidden Exhaust Pipe
Operator Seat Toyota Type Suspension Seat
Lighting LED Front & Rear Lights
Hydraulic Motor -
Charger -
Directional Control -
Aisle Width (Pallet 800×1000) -
Battery Voltage -
Travel Motor -
Motor Brand -
Motor Model -
Hydraulic Control -
